1170mm HEPA Air Filter

Name: 1170mm HEPA Air Filter
Brand: ZJNF
SKU: ZNPG
Rating: 4.7 (185 reviews)

Product Details

Place of Origin: China

Brand Name: ZJNF

Certification: UL

Model Number: ZNPG

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: plywood/wooden package

Delivery Time: 18 days

Payment Terms: tt lc PayPal credit card

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            570mm HEPA Air Filter, 1170mm Aluminum Frame HEPA Filter, 1170mm HEPA Air Filter


Application:	Air Purification	Filter Efficiency:	99.99% @ 0.3um
Filter Type:	HEPA	Material:	PTFE
Airflow Capacity:	1000-1500m³/h	Size:	117057069 Mm
Frame:	Aluminum	Temperature:	≤80℃
Humidity:	≤100%RH

Application:	Air Purification
Filter Efficiency:	99.99% @ 0.3um
Filter Type:	HEPA
Material:	PTFE
Airflow Capacity:	1000-1500m³/h
Size:	117057069 Mm
Frame:	Aluminum
Temperature:	≤80℃
Humidity:	≤100%RH

Description

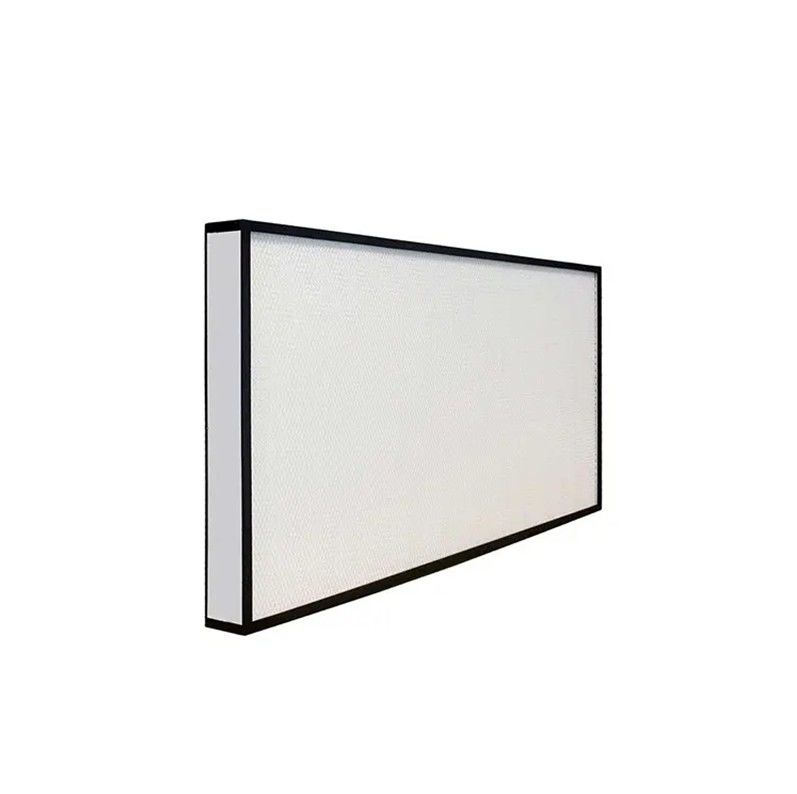

1170mm HEPA Air Filter

clean room mushroom mycology Aluminum Frame 1170x570mm 99.99% Efficiency PTFE Laminar Flow Hood H13 H14 HEPA Air Filter

Features

Widely used in electronics, semiconductors, precision machinery, pharmaceutical, hospital, food and other industries on the high requirements of civil or industrial clean places of the end of the filter.

Is mainly used for filtering air suspended particles under 0.3um, as the end of a variety of filtration system filtration;
Using ultra-fine glass fiber filter material, hot sol as the separator, special aluminum frame, polyurethane two-component sealant, closed-cell sponge sealing strip, spray plastic steel mesh uniform flow plate after strict process refined;
Pleated filter material can form ventilation airflow channel, increase the filter material area and air volume, reduce the resistance of the air supply;
Has the advantages of high filtration efficiency, low resistance, large dust capacity, good uniformity of wind speed, strong versatility, convenient installation, etc.;
Temperature resistance 80 C. Humidity resistance 100%.
Each no clapboard filter before the factory after one by one performance test, ensure the performance index of the air filter; And can according to the user request, manufacture each kind of non-standard specification size and the filtration request air filter.

1170mm HEPA Air Filter 0 1170mm HEPA Air Filter 1

Technical Data

Model	Dimension(mm)	Air Flow (m³/h)	Resistance(Pa)	Efficiency
ZNPG-U45	117057069	1000	102.1	99.9995%
ZNPG-H50	1170117069	2000	63.6	99.995%
ZNPG-U45	117057069	1500	67.8	99.9995%
ZJNPG-H50	1170117069	2960	93.5	99.995%
