Product Details
Place of Origin: China
Brand Name: ZJNF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: plywood/wooden package
Delivery Time: 18天
Payment Terms: tt lc PayPal credit card
Average Air Velocity: |
0.45m/s |
Function: |
Dust Removing |
Hepa Filter: |
H14 Hepa Filter |
Hepa Filter Efficiency: |
99.99% At 0.3um |
Noise Level: |
≤65 DB |
Work Surface: |
304 Stainless Steel |
Average Air Velocity: |
0.45m/s |
Function: |
Dust Removing |
Hepa Filter: |
H14 Hepa Filter |
Hepa Filter Efficiency: |
99.99% At 0.3um |
Noise Level: |
≤65 DB |
Work Surface: |
304 Stainless Steel |

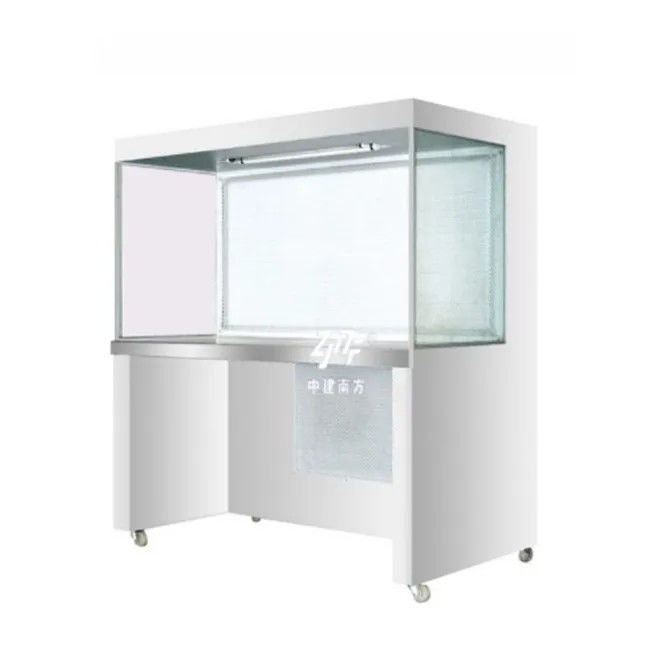

Vertical Horizontal Flow Single Double Person Anti Static Air Purification Clean Workbench
Anti-static purification workbench with 1.5mm thick high-quality cold-rolled steel plate, after pickling phosphating anticorrosion, surface for epoxy resin powder not electrostatic spraying processing, acid and alkali and rust, mesa all stainless steel.
Product Description
An anti-static purification workbench is a type of work surface designed for use in cleanroom or controlled environment applications. The anti-static feature helps prevent the buildup of static electricity on the work surface, which can attract and hold particulate contaminants. The purification aspect refers to the use of filtration and other methods to maintain a clean, contaminant-free work environment.
Widely used in health care, pharmaceutical preparations, biopharmaceuticals, plant tissue culture, animal husbandry and veterinary medicine, food and beverage, chemical experiment,Purification engineeringSuch as field and laboratory, provide sterile clean clean environment clean workbench.
Box: 1.5mm thick high-quality cold-rolled steel plate, after pickling phosphating anti-corrosion, surface for epoxy resin powder not electrostatic spraying treatment, anti-acid-base and anti-rust, mesa all stainless steel;
Single (double) single-sided vertical quasi-closed table, effectively preventing external air induction and odor on the human body in the operation area;
Adopt adjustable air volume fan system, light touch switch and multi-stage voltage regulation to ensure the wind speed in the working area is always in an ideal state;
Sliding door: double-suspended glass door, open up and down, easy and flexible operation, rubber damping pad embedded at the bottom of the sliding door to reduce the impact of the switch, no segment balance method code, sliding door up and down freely, can stay at any position;
Transmission: Double-suspended glass doors can be opened up and down flexibly and conveniently with low noise through synchronous transmission of guide rail, counterweight pulley block, steel cable, counterweight, etc.;
The front cover can be opened directly to facilitate replacement of filters, electronic component accessories, etc.
| Product specification | Anti-static double clean workbench | Anti-static single-person clean workbench |
| Cleanliness class | Class 100 @≥0.5μm (US$ 209E) | Class 100 @≥0.5μm (US$ 209E) |
| Colony count | ≤0.5/plate (Φ φ90mm culture plate) | ≤0.5/plate (Φ φ90mm culture plate) |
| mean wind speed | 0.3 ~ 0.6 m/s (adjustable) | 0.3 ~ 0.6 m/s (adjustable) |
| Noise | ≤58dB | ≤58dB |
| Electric source | AC, single 220V/50Hz | AC, single 220V/50Hz |
| illuminance | ≥300LX | ≥300LX |
| Semi-peak of vibration | ≤3μm(X.Y.Z direction) | ≤3μm(X.Y.Z direction) |
| Maximum power consumption | 800W | 800W |
| Weight | <250Kg | <200Kg |
| Workspace dimensions (mm) | 1700×680×600 | 1500×500×600 |
| Device outline dimensions (mm) | 1600×680×1600 | 1400×500×1450 |
| High efficiency filter specifications and quantity | 16000×550×50×1 | 1350×500×50×1 |
| Fluorescent/uv lamp specifications and quantity | 30w×1/ 30w×1 | 30w×①/ 30w×1 |
| Applicable headcount | Double single/2 person operation | Single sided/operated |
Note: the above parameters are for reference only, and the company can customize them according to the specific needs of customers.
