Goods Air Shower For Cleanroom Entrance

Product Details

Place of Origin: China

Brand Name: ZJNF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: plywood/wooden package

Delivery Time: 18 days

Payment Terms: tt lc PayPal credit card

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Goods Air Shower, Cleanroom Air Shower, Cleanroom Entrance Air Shower


Main Material:	Stainless Steel	Overall Dimension（mm）:	Custom
Inner House（mm）:	Custom	Door Inner（mm）:	Custom
HEPA Efficiency:	99.99%	Nozzle:	6-24

Main Material:	Stainless Steel
Overall Dimension（mm）:	Custom
Inner House（mm）:	Custom
Door Inner（mm）:	Custom
HEPA Efficiency:	99.99%
Nozzle:	6-24

Description

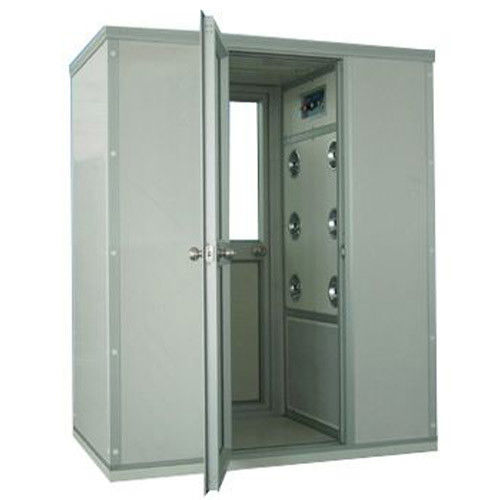

Goods Air Shower For Cleanroom Entrance

Goods Air Shower

Goods Air Shower is a specialized air purification device designed to remove dust and particles from the surfaces of goods using high-speed airflow, ensuring cleanliness before entry into controlled environments. It is widely used in industries with stringent cleanliness requirements, such as electronics manufacturing, biopharmaceuticals, and food processing‌

1. Structure and Components

‌Enclosure Module‌
- Assembled from left/right panels, top plate, and optional base plate for easy installation and goods access‌
- Constructed with stainless steel or galvanized steel for durability and airtightness‌
‌Core Components‌
- ‌Nozzle System‌: Adjustable multi-angle nozzles with airflow speeds of 25–30 m/s‌
- ‌Filtration System‌: Dual-stage (primary + HEPA) filtration for recycling contaminated air‌
- ‌Door Control‌: Electronically interlocked doors (manual/automatic/rapid roll-up) to prevent unclean air ingress‌

2. Working Principle

‌Entry Interlock‌: Doors close after goods entry, triggering the decontamination cycle‌
‌High-Efficiency Cleaning‌: Nozzles spray purified air to remove particles ≥0.3 μm‌
‌Air Recycling‌: Contaminated air is filtered and recirculated through the system‌

3. Key Features

Function	Description
‌Contamination Containment‌	Interlocked doors and airlock design block external pollutants‌24;
‌Rapid Cleaning‌	15–20-second cycle removes ≥99% of particles‌3;
‌Smart Controls‌	Voice prompts, real-time monitoring (airflow, filter lifespan), and remote operation‌23;
‌Flexible Design‌	Adapts to forklifts, conveyor systems, and various door types‌25.

4. Applications

‌Electronics‌: Prevents static-attracted dust in chip and LCD production‌
‌Pharmaceuticals‌: Complies with GMP standards in sterile packaging‌
‌Food Processing‌: Eliminates microbial contamination on raw materials‌

5. Technical Specifications

‌Airflow Speed‌: 25–30 m/s (nozzle output)‌
‌Cleanliness‌: Achieves ISO Class 5 (≤29 particles ≥0.5 μm/m³)‌
‌Compatibility‌: Suitable for small parts to large forklift-transported goods‌

Technical Data

Desc.	Single Side Air Shower	Double Side Air Shower	Double Side Air Shower (2 persons)	Double Side Air Shower (3 persons)	Cargo Air Shower
Outlet(mm)	W1200D1000H2100	W1400D1000H2100	W1400D1500H2100	W1400D2000H2100	W2000D2000H2100
Inner House(mm)	W800D910H1980	W800D910H1980	W800D1400H1980	W800D1910H1980	W1400D1910H2020
Door Inner(mm)	760*1960	760*1960	760*1960	760*1960	1360*2000
Power(KW)	1.1	1.1	2.2	2.2	2.2
HEPA	1	1	2	2	2
Lighting	1	1	2	2	2
Nozzle	6	12	18	24	24
