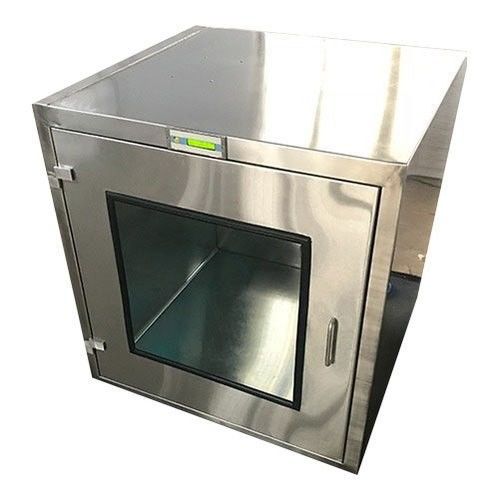

Stainless Steel ‌Cleanroom Pass-Through Windows 500x500 Clean Room Pass Through Chamber

Product Details

Place of Origin: China

Brand Name: ZJNF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: plywood/wooden package

Delivery Time: 18 days

Payment Terms: tt lc PayPal credit card

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Cleanroom Pass-Through Windows 500x500, 500x500 Clean Room Pass Through Chamber, Stainless Steel Cleanroom Pass-Through Windows


Size:	Customization	Tank Material:	Zinc Steel/Aluminium/Stainless Steel
Efficiency:	99.99% @ 0.3um	Voltage:	220V 50/60 Hz
Weight:	16-25 KG	Type:	Mechanical/Electronic Interlock
Application:	Clean Room	Color:	Silver

Size:	Customization
Tank Material:	Zinc Steel/Aluminium/Stainless Steel
Efficiency:	99.99% @ 0.3um
Voltage:	220V 50/60 Hz
Weight:	16-25 KG
Type:	Mechanical/Electronic Interlock
Application:	Clean Room
Color:	Silver

Description

Stainless Steel ‌Cleanroom Pass-Through Windows 500x500 Clean Room Pass Through Chamber

‌Cleanroom Pass-Through Windows‌

Pass-through windows used in cleanrooms are specialized equipment designed to transfer items between areas of different cleanliness levels while maintaining contamination control. Their core functions and features include:

‌I. Definition and Purpose‌

Pass-through windows physically isolate and purify items during transfer between cleanrooms and external environments (or zones with varying cleanliness levels). They minimize door openings and block direct air exchange, preventing contaminants like dust and microbes from entering high-cleanliness zones‌

‌II. Structural Design and Features‌

‌Materials and Sealing‌
- ‌Housing‌: Stainless steel or aluminum alloy for corrosion resistance and easy cleaning‌
- ‌Seals‌: High-elasticity silicone/fluororubber gaskets ensure airtight closure‌
‌Interlock and Purification Systems‌
- ‌Dual-door design‌: Equipped with electronic/mechanical interlocks to prevent simultaneous opening of both doors‌
- ‌HEPA filters and UV lamps‌: Remove airborne particles and sterilize microorganisms‌
- ‌Laminar airflow‌: Optional unidirectional airflow systems (e.g., top-down airflow) for ISO Class 5 cleanliness‌

‌III. Types and Applications‌

‌Type‌	‌Features‌	‌Use Cases‌
‌Standard Pass-Through‌	Basic UV sterilization and isolation	Low-risk cleanrooms‌
‌Laminar Flow Pass-Through‌	HEPA-filtered vertical airflow (ISO Class 5)	Pharmaceuticals, precision electronics‌
‌Air Shower Pass-Through‌	High-pressure nozzles purge particles from surfaces	Industrial cleanrooms (e.g., metalworking)‌
‌Sterilizing Pass-Through‌	UV/ozone sterilization for aseptic requirements	Biotech labs, healthcare‌
‌Air Lock Pass-Through‌	Creates an air barrier during operation	High-cleanliness zone transitions‌

‌IV. Key Industries‌

Pass-through windows are critical in industries requiring stringent contamination control:

‌Electronics‌: Semiconductor and microchip manufacturing;
‌Biopharma‌: Sterile drug production and labs;
‌Food Processing‌: Aseptic packaging;
‌Optics‌: Precision lens and display manufacturing‌

‌V. Usage Guidelines‌

‌Operation‌: Follow strict door alternation protocols to avoid cross-contamination‌
‌Maintenance‌: Regularly replace HEPA filters, clean UV lamps, and sanitize interiors‌
‌Selection Criteria‌: Choose based on cleanliness level, sterilization needs, and item type‌

Technical Data

Model	Mechanical Interlocks	Electronic Interlocks
External dimension (mm)	W760D660H660
Internal dimension (mm)	W600D600H600
Voltage	220V 50HZ
Case Material (outside)	Cold Rolled Steel Sheet
Case Material (inside)	Stainless Steel
Surface	Plastic spraying
