Stainless Steel Conveyor Shoe Cleaner with Air Shower for Cleanrooms

Product Details

Place of Origin: China

Brand Name: ZJNF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: plywood/wooden package

Delivery Time: 18 days

Payment Terms: tt lc PayPal credit card

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    stainless steel conveyor shoe cleaner, cleanroom shoe cleaner with air shower, conveyor shoe cleaner for cleanrooms


Main Material:	Stainless Steel	Overall Dimension（mm）:	Custom
Inner House（mm）:	Custom	Door Inner（mm）:	Custom
HEPA Efficiency:	99.99%	Nozzle:	6-24

Main Material:	Stainless Steel
Overall Dimension（mm）:	Custom
Inner House（mm）:	Custom
Door Inner（mm）:	Custom
HEPA Efficiency:	99.99%
Nozzle:	6-24

Description

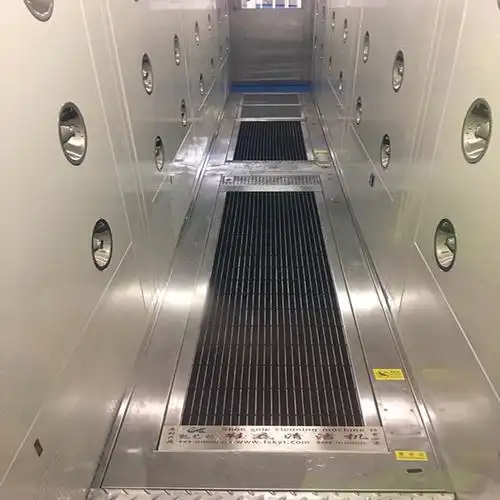

Stainless Steel Conveyor Shoe Cleaner with Air Shower for Cleanrooms

Integrated Material Air Lock with Conveyor Shoe Cleaner

This hybrid system combines a cargo air shower with an automated sole-cleaning module, specifically engineered to eliminate particulate contamination from both goods and personnel footwear in controlled environments‌

Core Components & Operation

‌Dual-Function Design‌:
- ‌Material Air Lock‌: Uses HEPA-filtered vertical/lateral airflow to remove surface particles from goods during transit‌
- ‌Conveyor Shoe Cleaner‌: Rotating brush rollers with water spray or high-pressure air jets scrub soles within the access corridor‌

‌Control Systems‌:
- Auto-sensing mode activates cleaning upon entry; manual-triggered mode allows selective operation‌
- Programmable parameters: Brush rotation duration (P0), drainage intervals (P1), and low-water alerts (P2)‌

Configuration Variants

‌Embedded Type‌: Shoe cleaner integrated into the air lock floor (widths: 850–2850mm)‌
‌Modular Channel‌: Standalone cleaning unit paired with air lock entry (widths: 1000–3000mm)‌

Critical Specifications

‌Cleaning Efficiency‌: Removes >99% of debris from shoe grooves ≤2mm deep‌
‌Compliance‌: Meets ISO Class 4/5 standards for pharmaceutical/electronic facilities‌
‌Maintenance‌: Extended brush lifespan (4mm thickened bristles), auto-drainage cycles‌

Operational Workflow

‌Loading Phase‌:
- Place goods on conveyor; personnel step onto cleaning track‌
‌Decontamination Sequence‌:
- Goods: 20–30 sec air shower cycle‌
- Footwear: 5-sec brush rotation with water spray (max runtime ≤5 mins)‌
‌Shutdown‌:
- UV sterilization post-use; water tank drainage every 2–4 hrs‌
