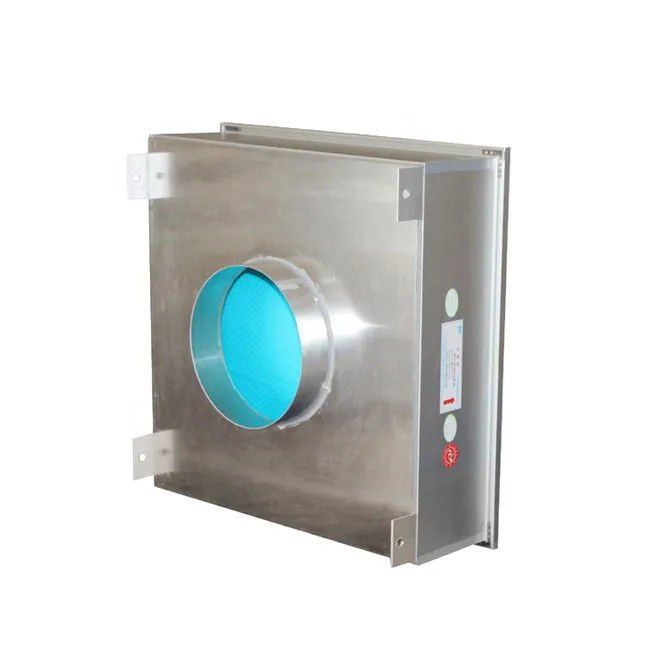

Cleanroom HVAC Supply Outlet , Rectangular Liquid Tank Seal Type Supply Air Outlet

Scope of Application:

Hospital, biopharmaceuticals, semiconductors, liquid crystal manufacturing, precision machinery, optics, etc.

Introduction of liquid tank sealed high efficiency air supply outlet

The tank body of the liquid tank sealed high-efficiency air supply outlet is mainly connected with the welded cold-rolled steel plate, and all the welds are subjected to special glue sealing treatment to prevent air leakage. The diffuser plate is fixed by fixing bolts, which is convenient for installation and disassembly. When the filter is replaced, the diffuser plate can be directly operated at the bottom of the ceiling without dismantling the box body on the ceiling system. The air inlet at that top of the box body is provide with a butterfly air valve, and the side surface at the bottom of the box body is controlled by a rotating valve regulate device to regulate the air volume entering a clean room.

Characteristics of liquid tank sealed high efficiency air supply outlet

1. The liquid tank sealing type high-efficiency air supply opening is arranged at the bottom of the box body; a butterfly valve adjusting device and a butterfly air valve are connected by a metal adjusting thin rod; The device can be directly rotated from the bottom to control the butterfly valve, making it simple and convenient to adjust the air volume entering the room. In addition, a sealant groove is arranged around the frame of the zhongjian south high-efficiency filter which is matched with the liquid groove sealing high-efficiency tuyere for use.

2. In that installation proces, the groove filled with the sealant is nest with the knife edges around the box body to form an airtight seal. And the sealant can not be adhered on the knife edge around the box body in the process of replacing the filter.

3. The surface of the box body is treated by electrostatic plastic spraying, with strong corrosion resistance. The sealing design of the liquid tank further enhances its uniqueness.

Application range of liquid tank sealed high efficiency air supply outlet:

The liquid tank sealing type efficient air supply opening is a liquid sealing type efficient air supply opening with a replaceable efficient filter, and the liquid tank sealing type efficient air supply opening is widely applied to the technical fields of hospitals, biopharmaceuticals, semiconductors, liquid crystal manufacturing, precision machinery, optics and the like.
