Product Details
Place of Origin: China
Brand Name: ZJNF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: plywood/wooden package
Delivery Time: 18 days
Payment Terms: tt lc PayPal credit card
Material: |
Stainless Steel |
Power Supply: |
110V/220V 50Hz/60Hz |
Function: |
Air Purification |
Efficiency: |
H14 U15 |
Air Flow: |
1000-1800 (m³/h)900 |
Air Velocity: |
0.45m/s |
Material: |
Stainless Steel |
Power Supply: |
110V/220V 50Hz/60Hz |
Function: |
Air Purification |
Efficiency: |
H14 U15 |
Air Flow: |
1000-1800 (m³/h)900 |
Air Velocity: |
0.45m/s |

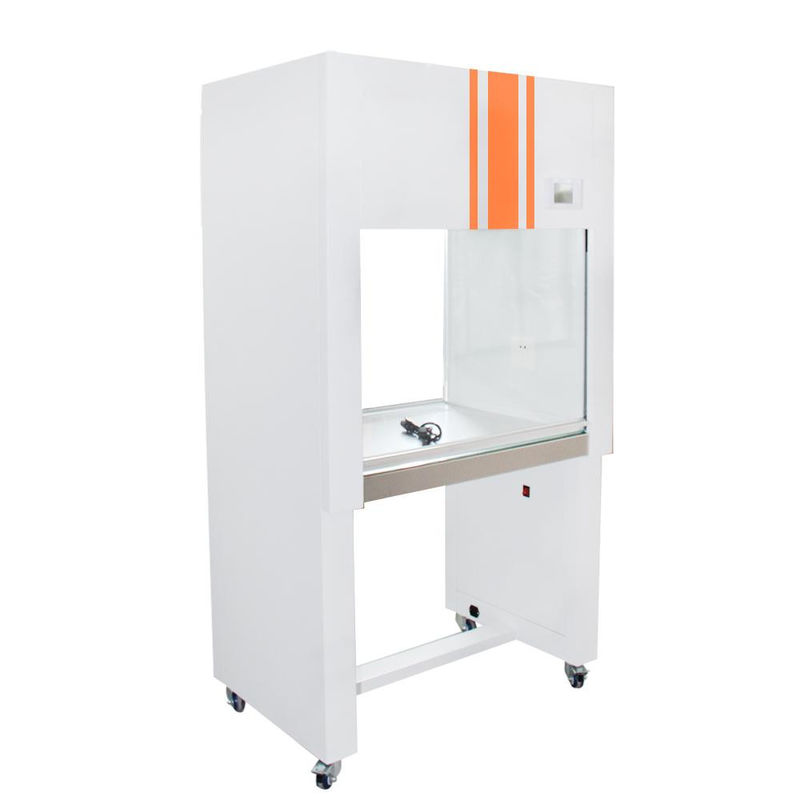

Custom ISO Standard Dimension Clean Room Work Bench Air Purification Industrial Factory
Technical Data
| Product specification | Anti-static double clean workbench | Anti-static single-person clean workbench |
| Cleanliness class | Class 100 @≥0.5μm (US$ 209E) | Class 100 @≥0.5μm (US$ 209E) |
| Colony count | ≤0.5/plate (Φ φ90mm culture plate) | ≤0.5/plate (Φ φ90mm culture plate) |
| Mean wind speed | 0.3 ~ 0.6 m/s (adjustable) | 0.3 ~ 0.6 m/s (adjustable) |
| Noise | ≤58dB | ≤58dB |
| Electric source | AC, single 220V/50Hz | AC, single 220V/50Hz |
| Illuminance | ≥300LX | ≥300LX |
| Semi-peak of vibration | ≤3μm(X.Y.Z direction) | ≤3μm(X.Y.Z direction) |
| Maximum power consumption | 800W | 800W |
| Weight | <250Kg | <200Kg |
| Workspace dimensions (mm) | 1700×680×600 | 1500×500×600 |
| Device outline dimensions (mm) | 1600×680×1600 | 1400×500×1450 |
| High efficiency filter specifications and quantity | 16000×550×50×1 | 1350×500×50×1 |
| Fluorescent/uv lamp specifications and quantity | 30w×1/ 30w×1 | 30w×①/ 30w×1 |
| Applicable headcount | Double single/2 person operation | Single sided/operated |
Application
Cleanroom benches are the perfect solution for facilities that handle too small a volume of cleaning critical products to justify the cost of an entire cleanroom.
Unidirectional airflow benches provide advanced product protection by ensuring that work on the bench is exposed only to HEPA filtered air. Applications where laminar flow benches are typically used include:
